Can-Am Maverick R Tie Rod Kit
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
- 7075 Aluminum Main Tie Rod Body
- 7075 Inner Steering Rack Flag
- 4140 Chromoly Outer Tie Rod End
- FK Outer Uniballs
- FK Inner Heim Joints
- 304 Stainless Steel Misalignment Spacers
- Lifetime Warranty
Through Extensive testing we have developed a high quality and extremely durable tie rod kit. This tie rod has successfully completed multiple races across various series including Ultra4, BITD and Champ Offroad.
Our kit is available in 3 different variations.

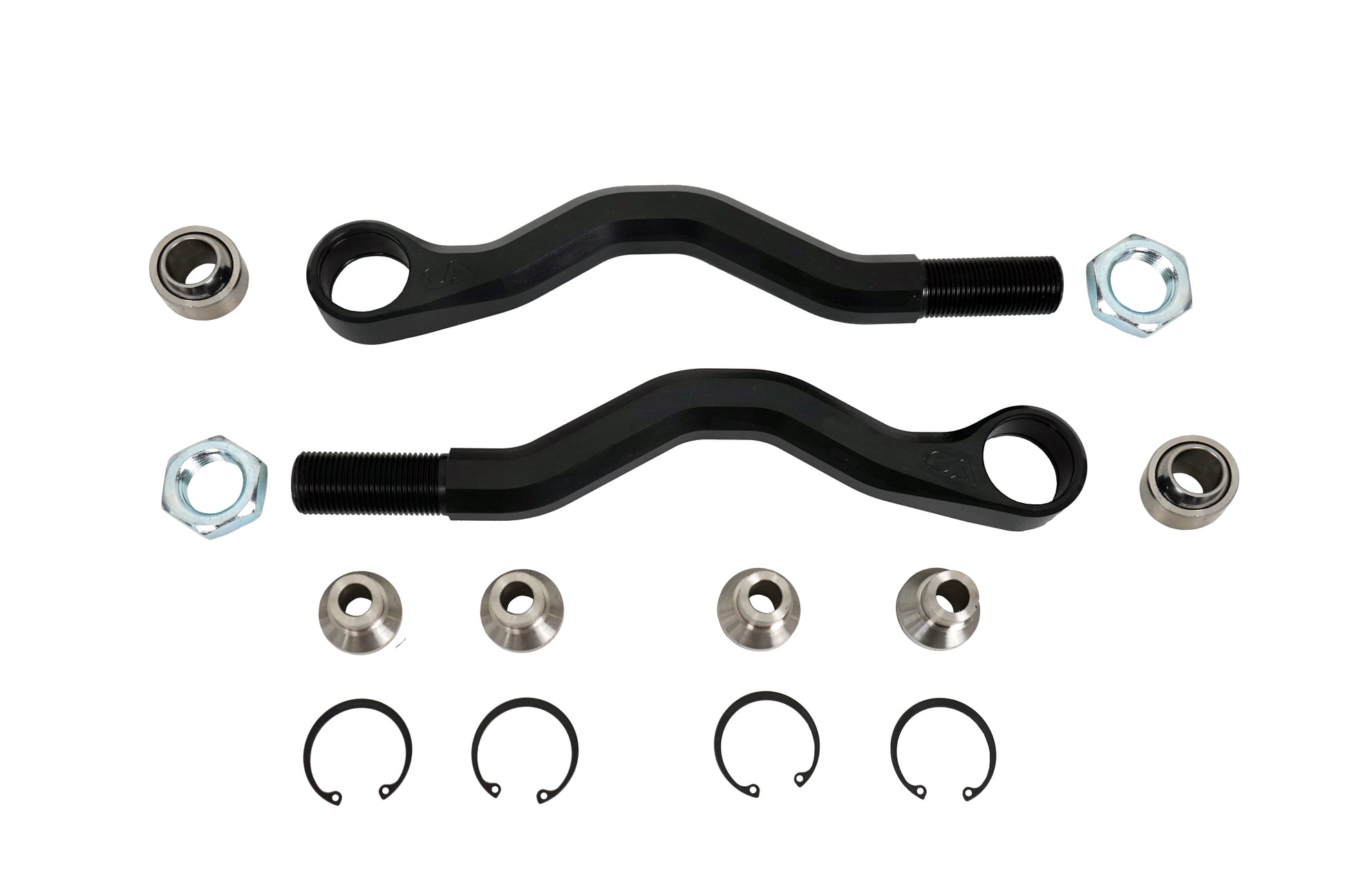

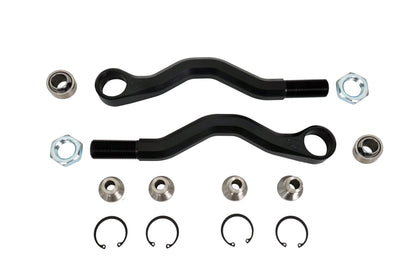

Variation one is the outer tie rod end only. This consists of a 4140 chromoly tie rod end for superior strength, FK Uniball as well as 304 stainless steel spacers for corrosion resistance.

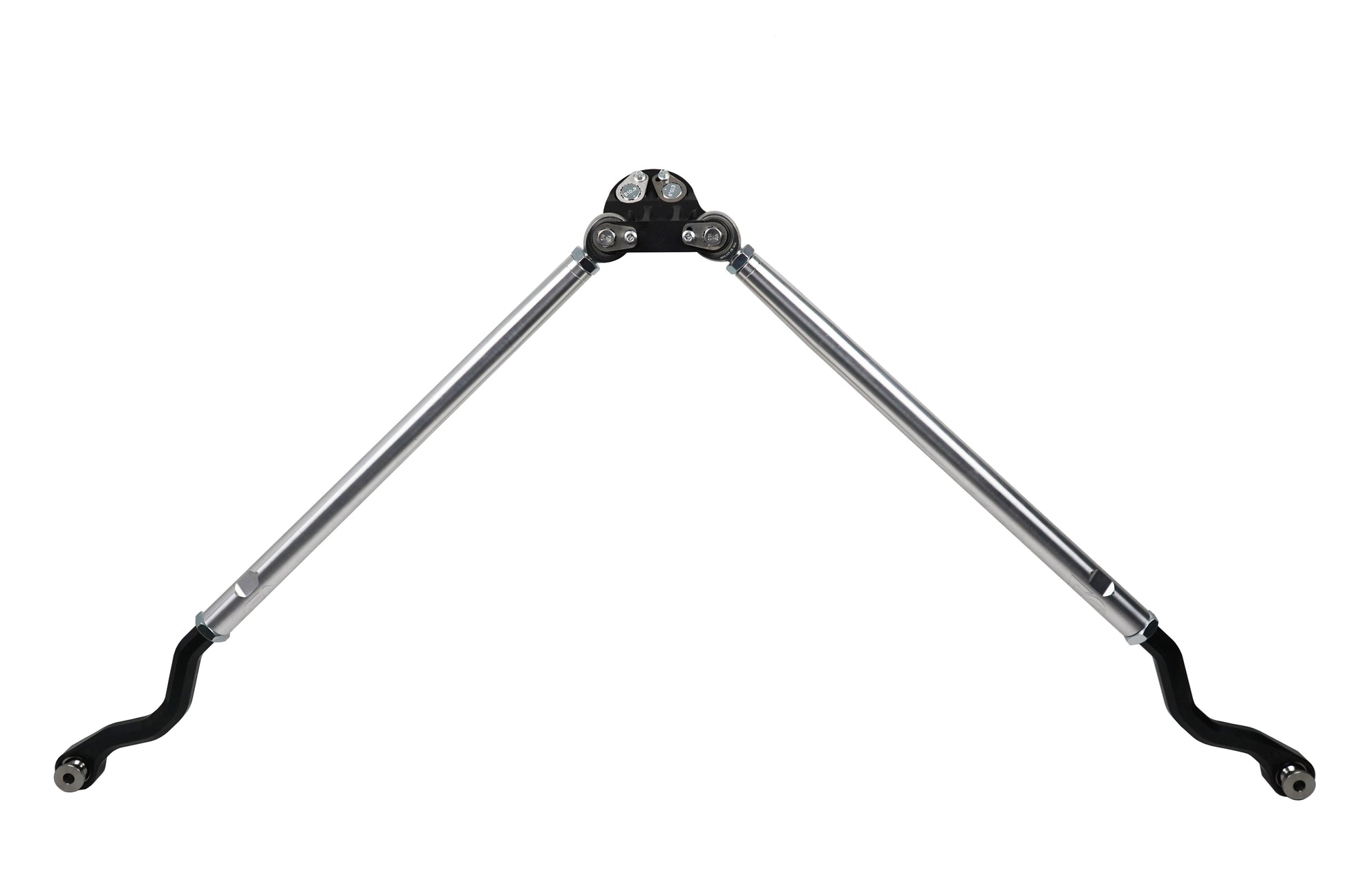

Variation two consists of the inner steering rack flag which converts the inner ball and socket joints to a simple heim joint for decreased wear and is made from billet 7075 aluminum for added strength. It also includes our inner tie rod which is machined from 1.5" 7075 aluminum to a finished outside diameter of 1.31" an industry leading advantage making it not only larger but also stronger than any other tie rod on the market! This variation comes with all necessary hardware, heim joints, and spacers to install.
The inner tie rod and the outer tie rod retain the same thread size and pitch as the OEM so they are 100% compatible with the OEM components independent from their aftermarket counterpart.
Variation 3 is the entire kit which includes the steering flag, inner joints, outer tie rod, uniballs, spacers, bolts and heims to fully install.

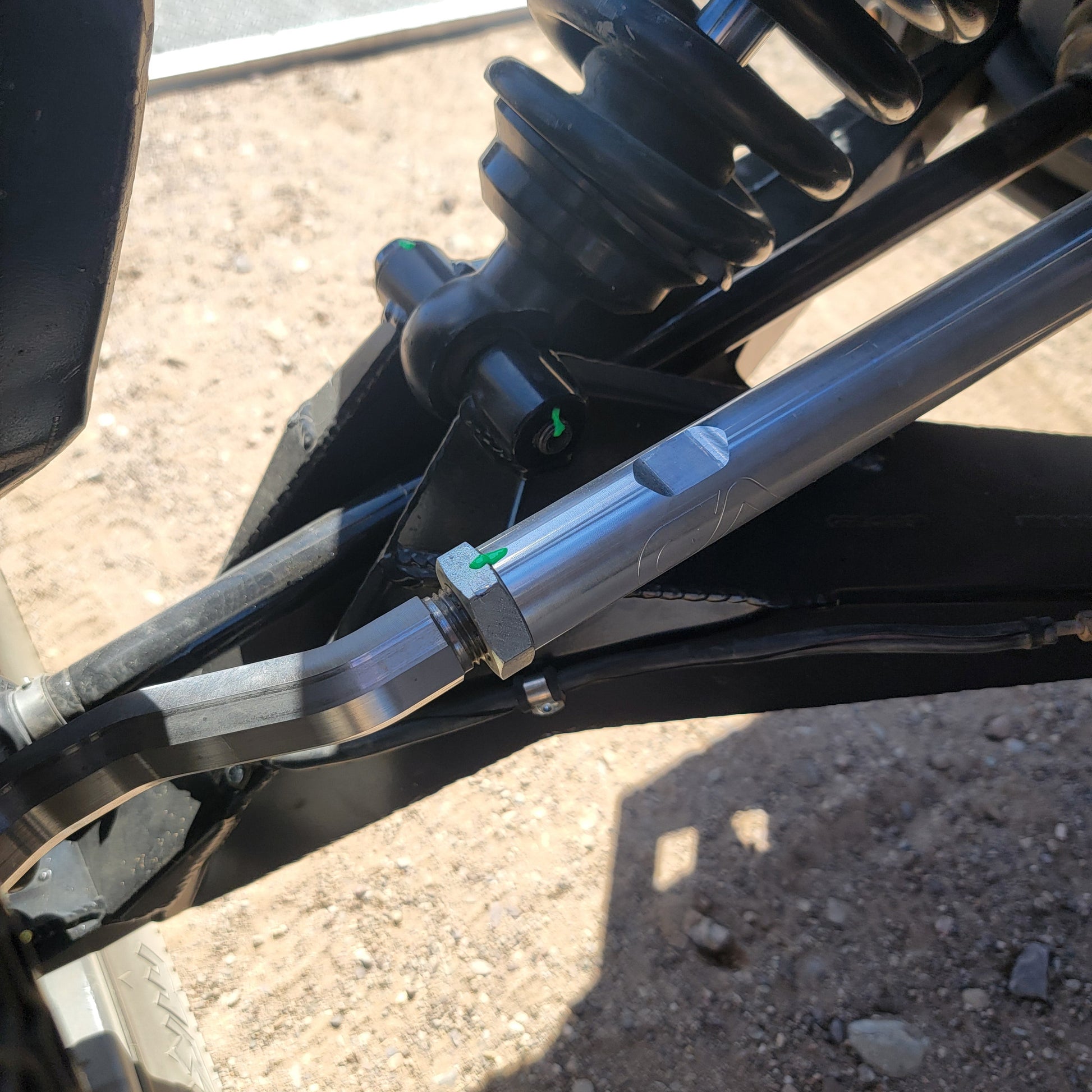

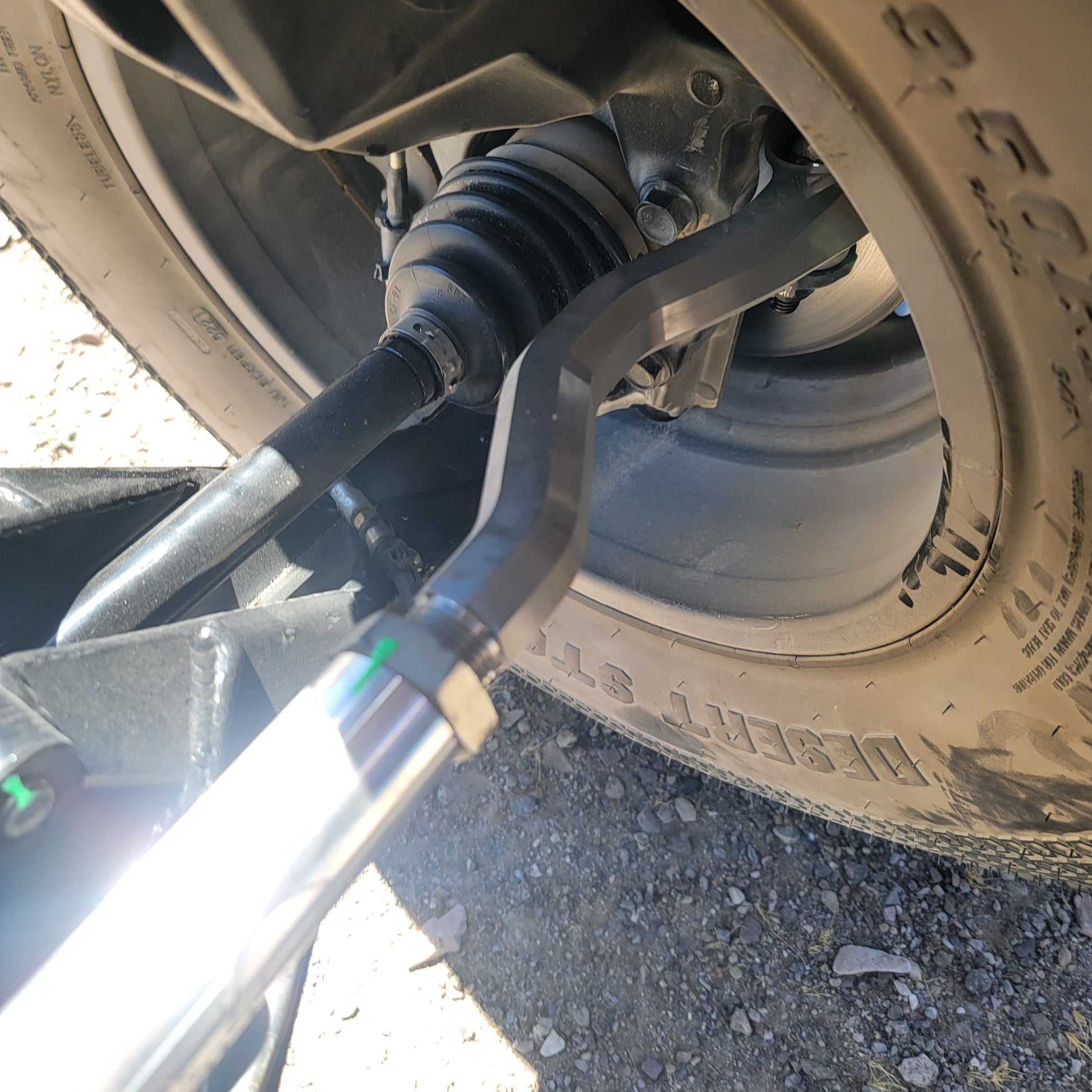

Part pictured is actual product installed in a race application and might not depict your exact installation.
Steering Stabilizer NOT included It can be purchased separately here
