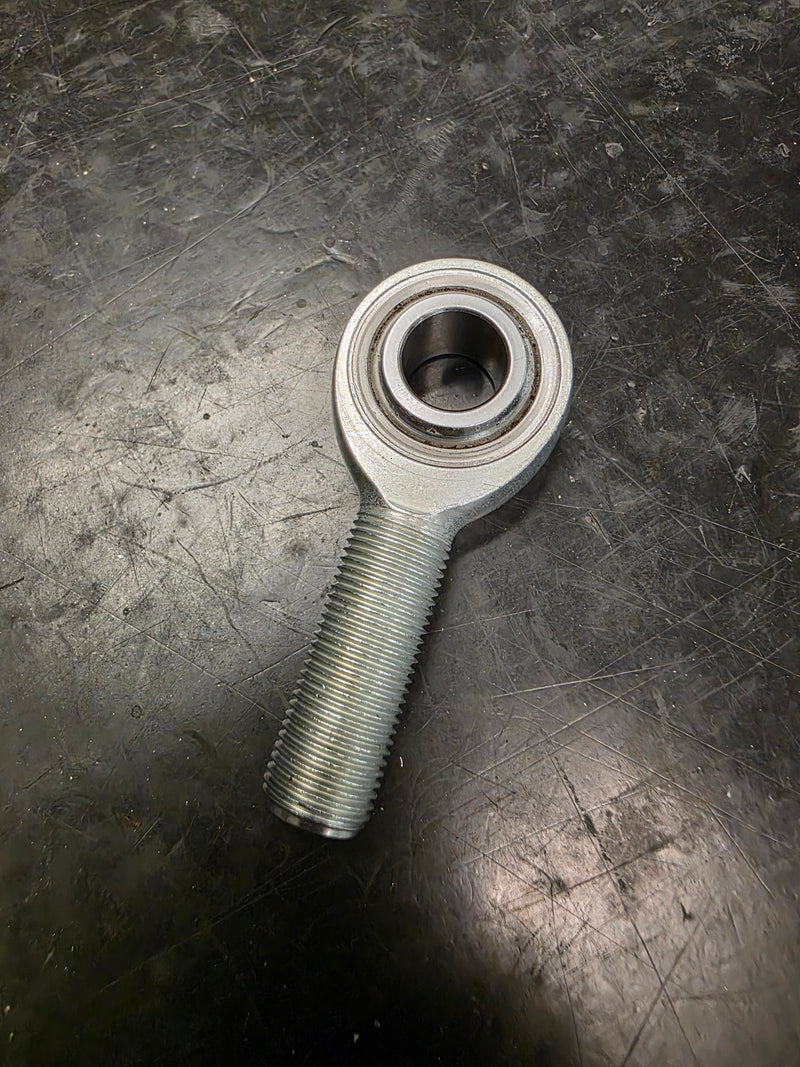

Chromoly JMX 5/8" LH Joint
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
These chromoly 3-piece rod ends are precision-built to last long and for high strength. The bodies and races of JMX rod ends are heat-treated 4130 chromoly that is zinc plated for corrosion resistance. The ball is 52100 steel offering excellent wear and durability and is hard chrome plated.
Model: JMXL10T
Fit: F1
Rod End Thread Size: 5/8-18 Left Hand
Rod End Body Material - 4130 Chromoly
Rod End Attachment: Male threads
Rod End Construction: 3-piece
Rod End Style: PTFE lined
Jam Nut Included: No
Thread Length: 1.625 in.
Rod End Head Bore Size: 0.625 in.
Rod End Head Diameter: 1.500 in.
Rod End Head Width: 0.562 in.
Grease Fitting: No
Rod End Centerline Length: 2.625 in.
Heat-Treated: Yes
Rod End Ball Width: 0.750 in.
Rod End Static Load Capacity: 17,959 lbs.
Sold Individually
This product is not manufactured by FK
